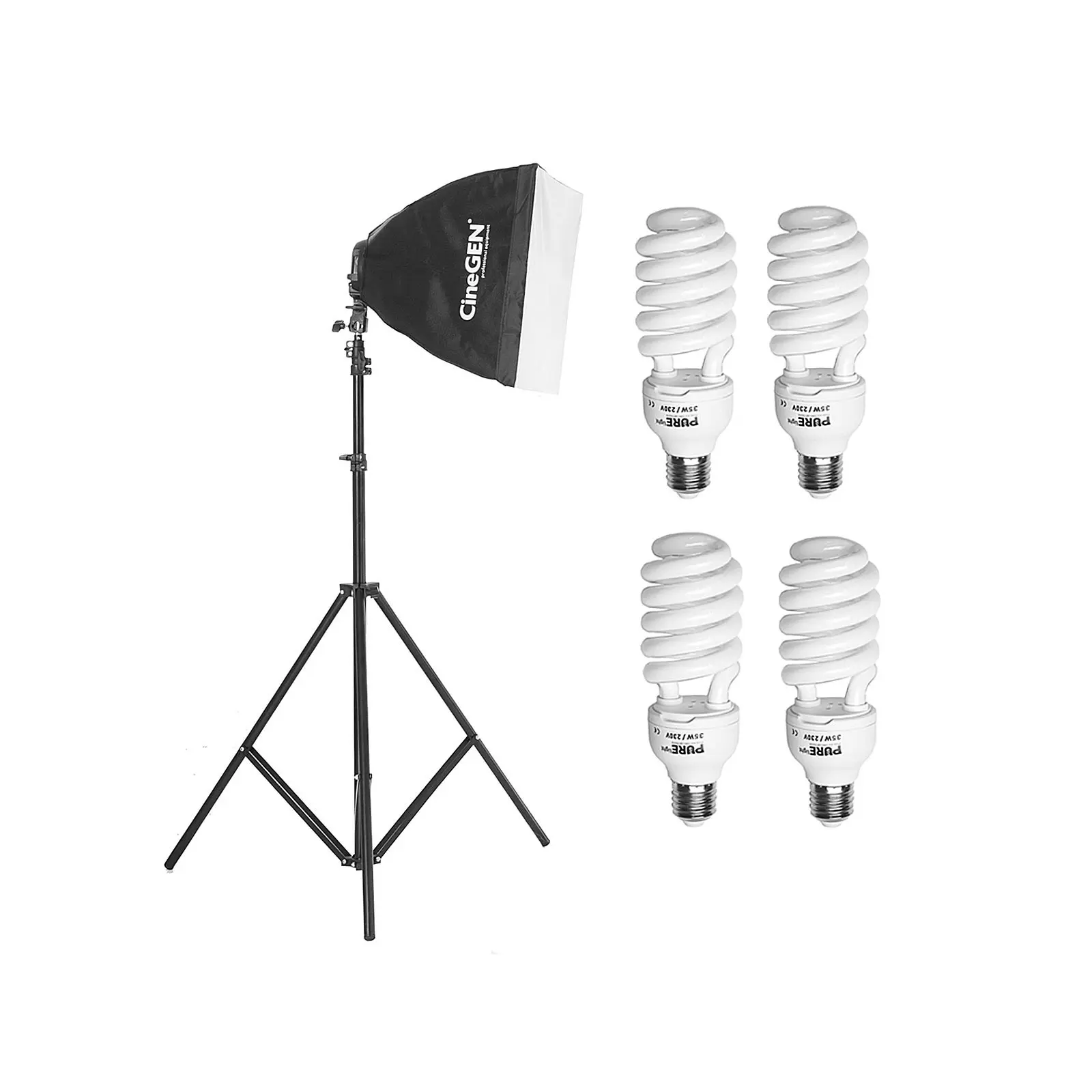

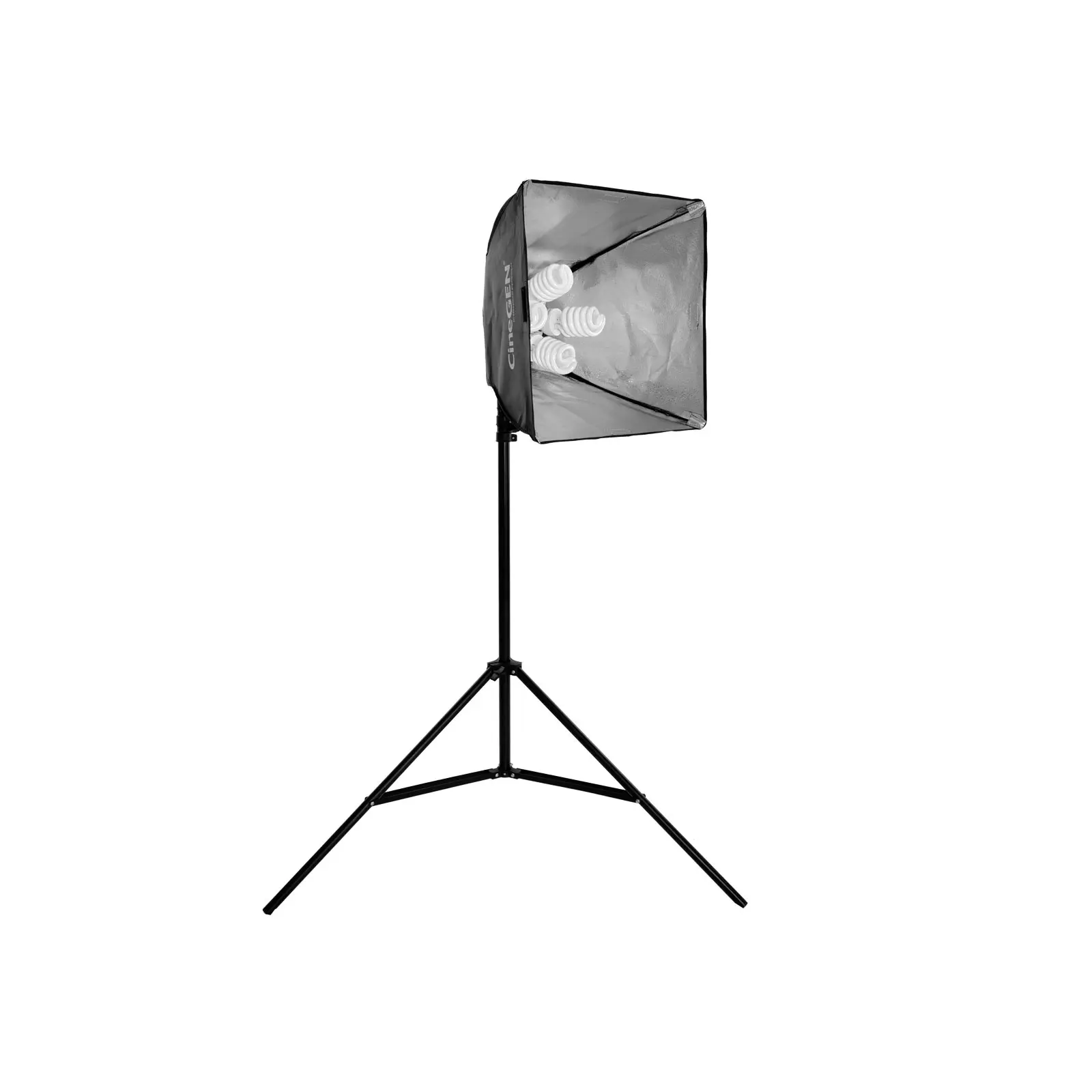

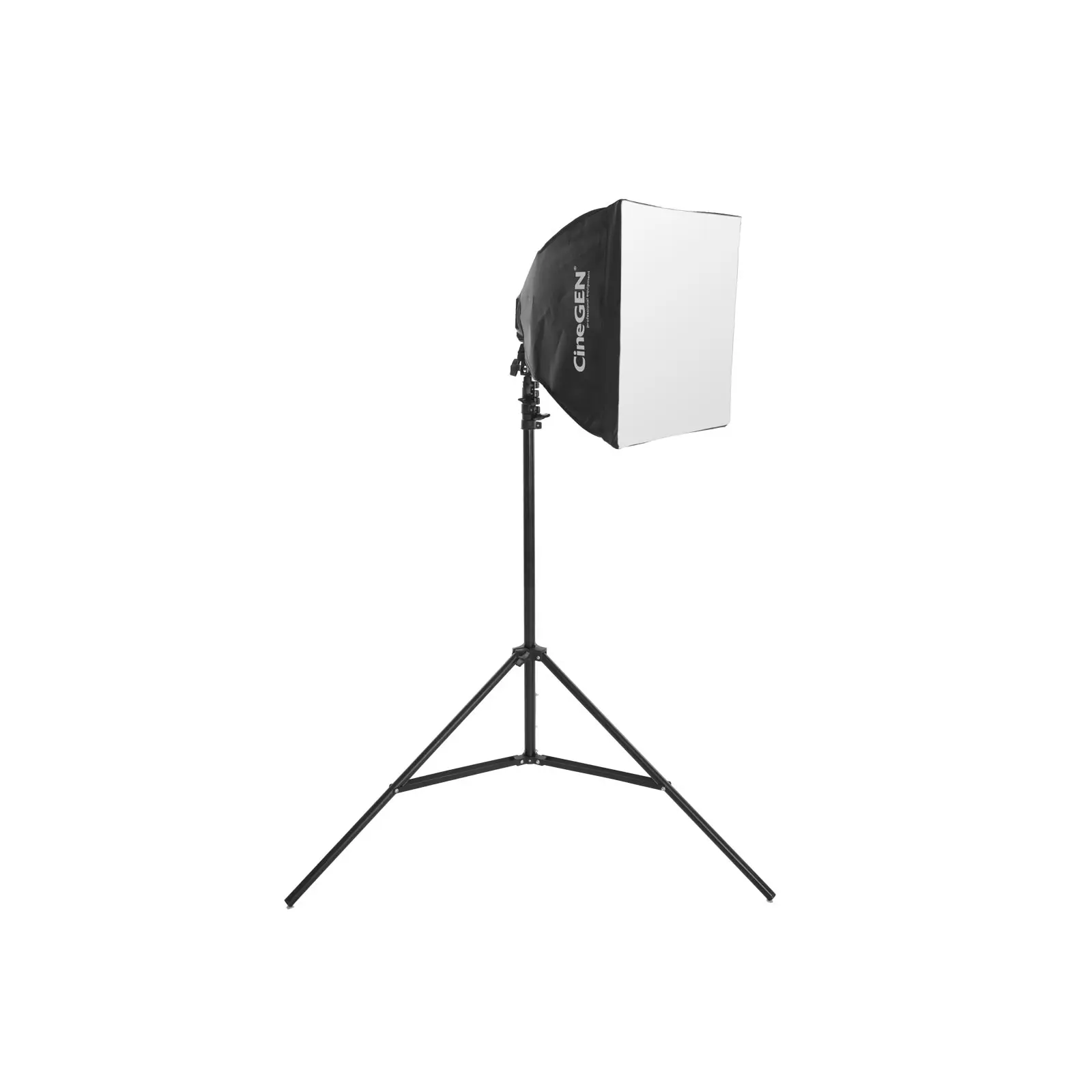

SOFTBOX 40x40 4x85W 802 Lamp
Popular complete constant light SOFTBOX lamp 40x40cm, with a set of 4 bulbs 85W(400W) and CGLS-802 lighting stand. Designed for photography and filming. Can work as a softbox and spotlight.
Do you want your shots to be hypnotizing with their richness of colors and details? Did you know that properly chosen lighting enhances the quality of photos? The Vidoo™ studio lights bring colors to life, increase sharpness, and add depth to your images. They are ideal for those who need professional-looking photos for auctions or online stores. Perfect for portraits, beauty shots, fashion, and glamour photography. Using lights from the Vidoo™ series significantly reduces post-processing time.
Vivid Colors
More light means lower ISO sensitivity, resulting in better color saturation.Sharp Image
With more light, you get shorter exposure times, less camera shake, and thus a sharper image.Rich Backgrounds
More light provides better illumination for distant subjects, making the image appear more three-dimensional.Softboxes are an essential element of a photographic studio. They are used to modify the properties of light: the size of the luminous surface, intensity, and direction. Recently, they have gained popularity in video productions as well. An excellent alternative to kinoflo lights. Softboxes soften tonal transitions between light and shadow.
Tip: Most lighting issues within a frame often result from an excess of light rather than its absence. When setting up your lighting, start with the lamps that have the least impact on the entire scene - set up the key (main) light last.
Lighting Fixture

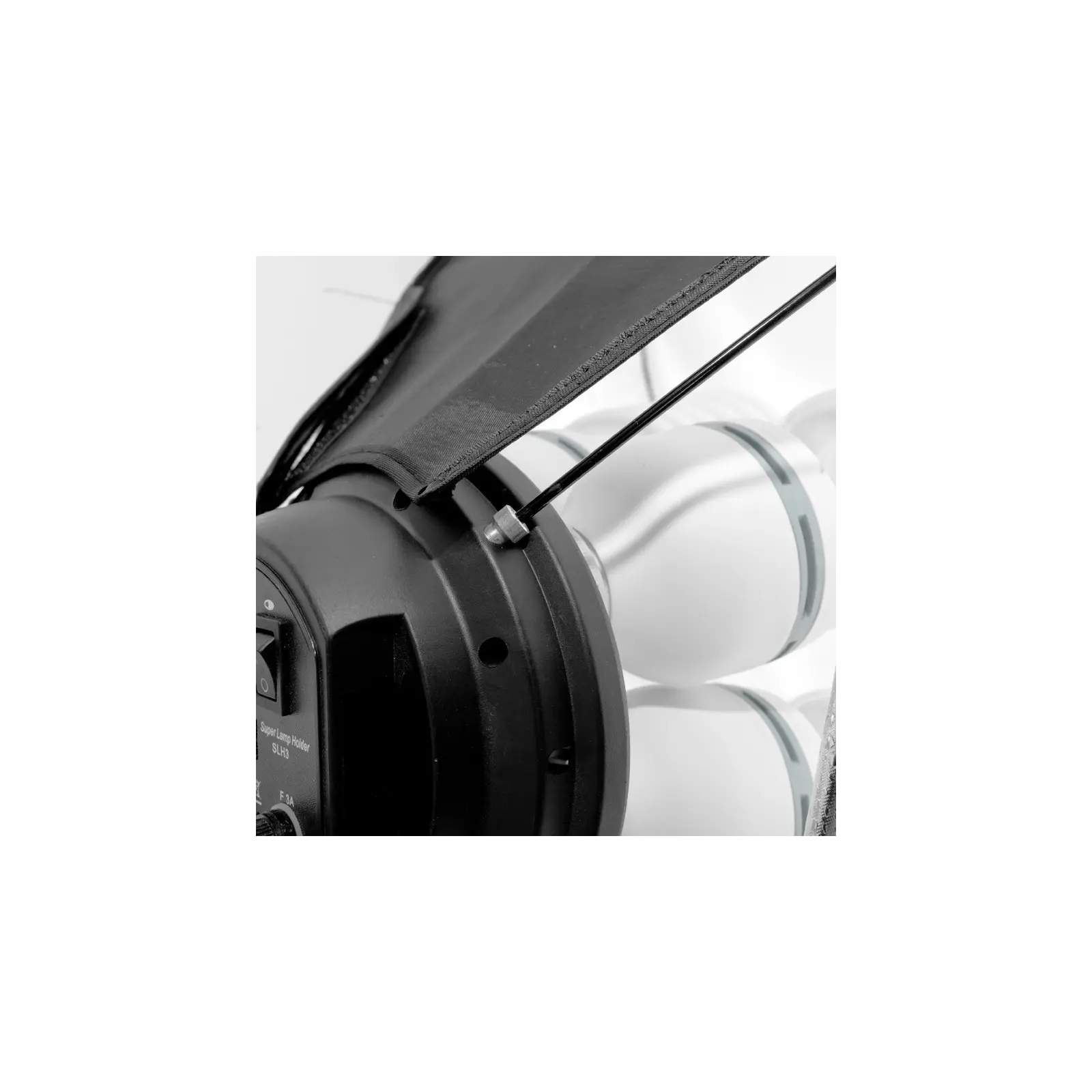

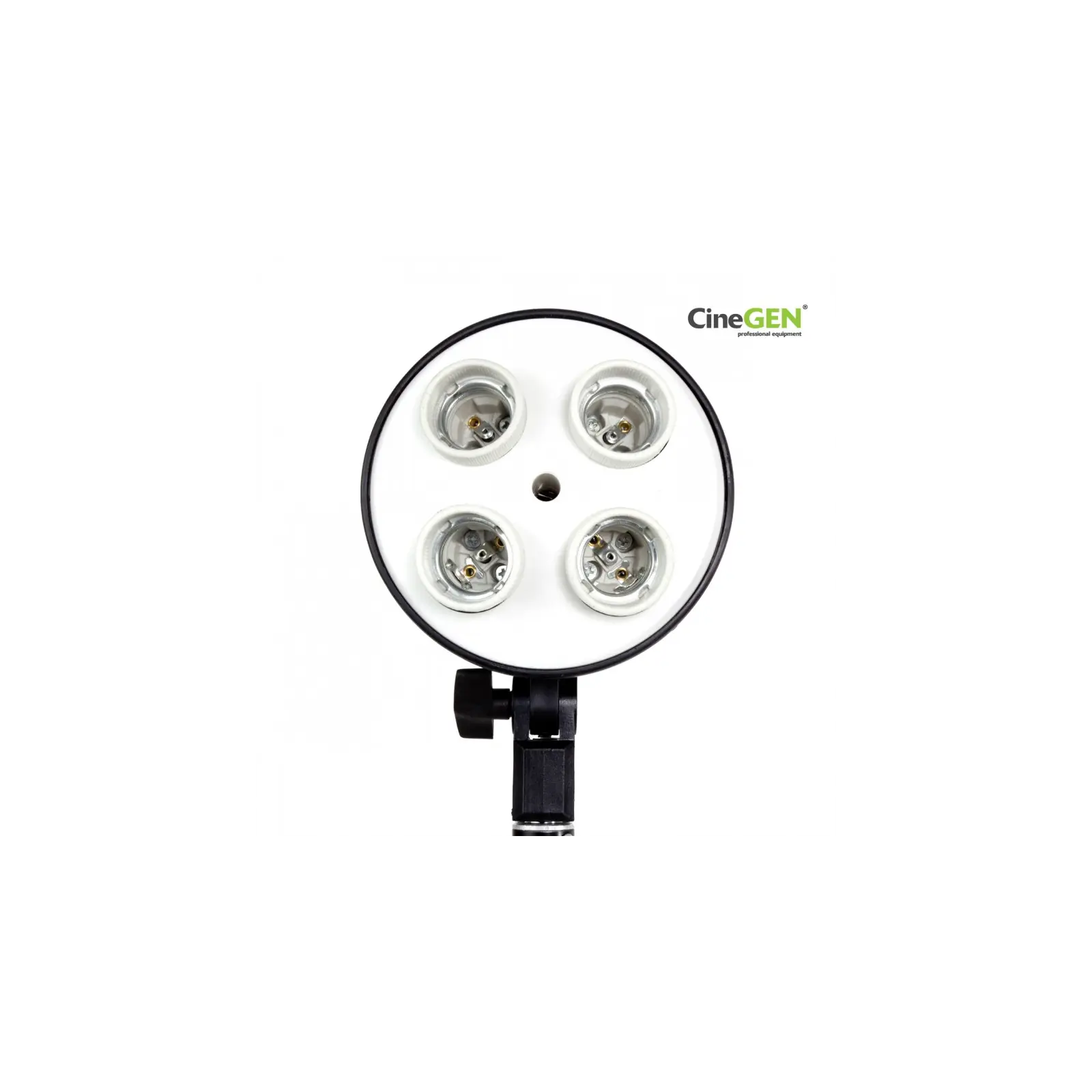

The lighting fixture consists of a quadruple E27 bulb holder and a softbox hood (reflective and diffusing fabric, as well as tensioning rods). The shape of the hood was chosen to ensure that the maximum amount of light reaches the diffusion fabric.

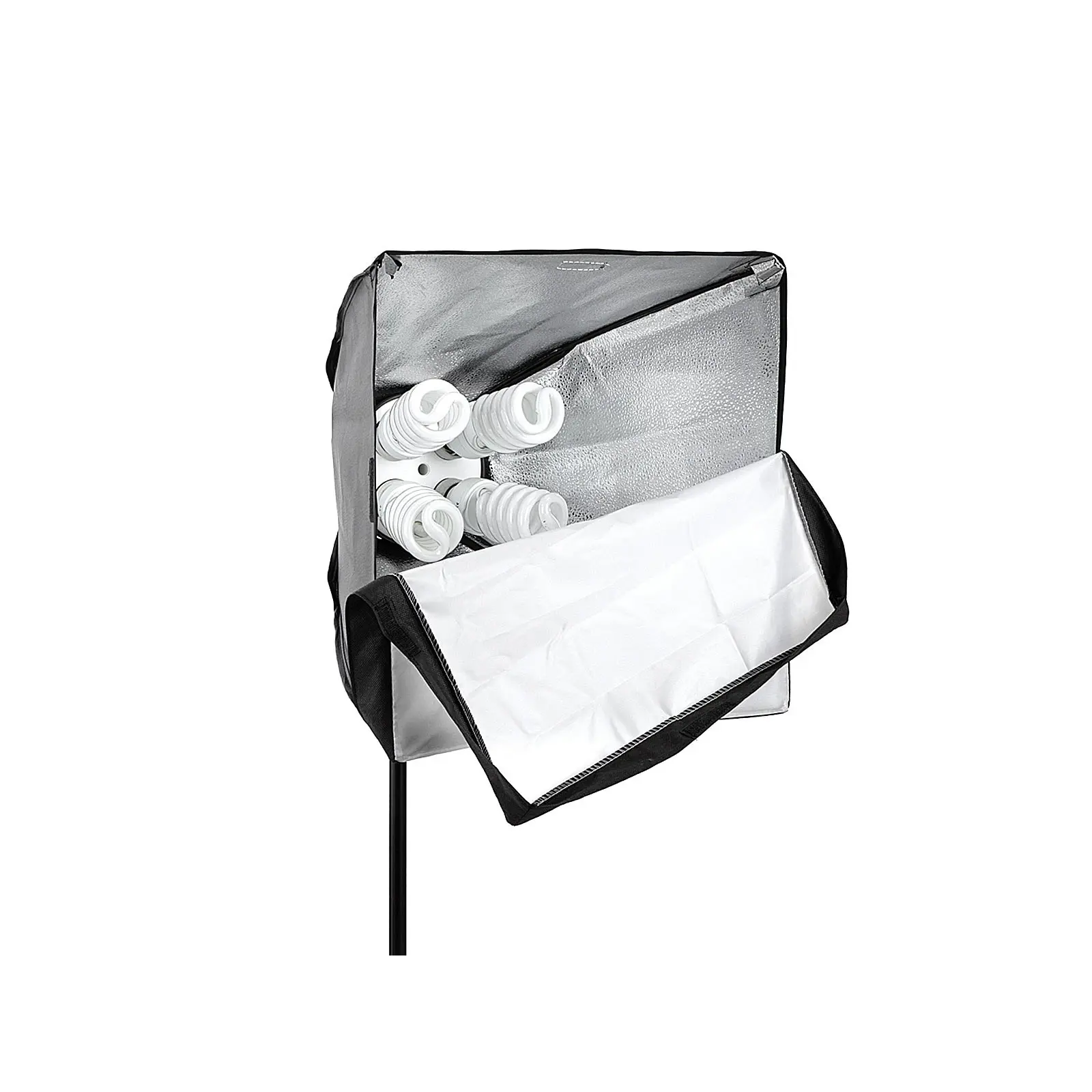

The softbox is made from high-quality materials used by leading manufacturers. On the inside, it has a silver, metallized reflective surface which prevents light emission backward and sideways while reflecting it in the desired direction - towards the diffusing fabric. This ensures that the maximum amount of light reaches the object being photographed. The exterior of the softbox is matte black, preventing reflection from other lamps.
The softbox is designed to work with four bulbs of a maximum power of 85W/400W each. It allows for stepped power regulation by turning on/off pairs of bulbs (two switches): 0%-50%-100%. The set is attached to lighting stands using a bracket that provides an adjustable angle.

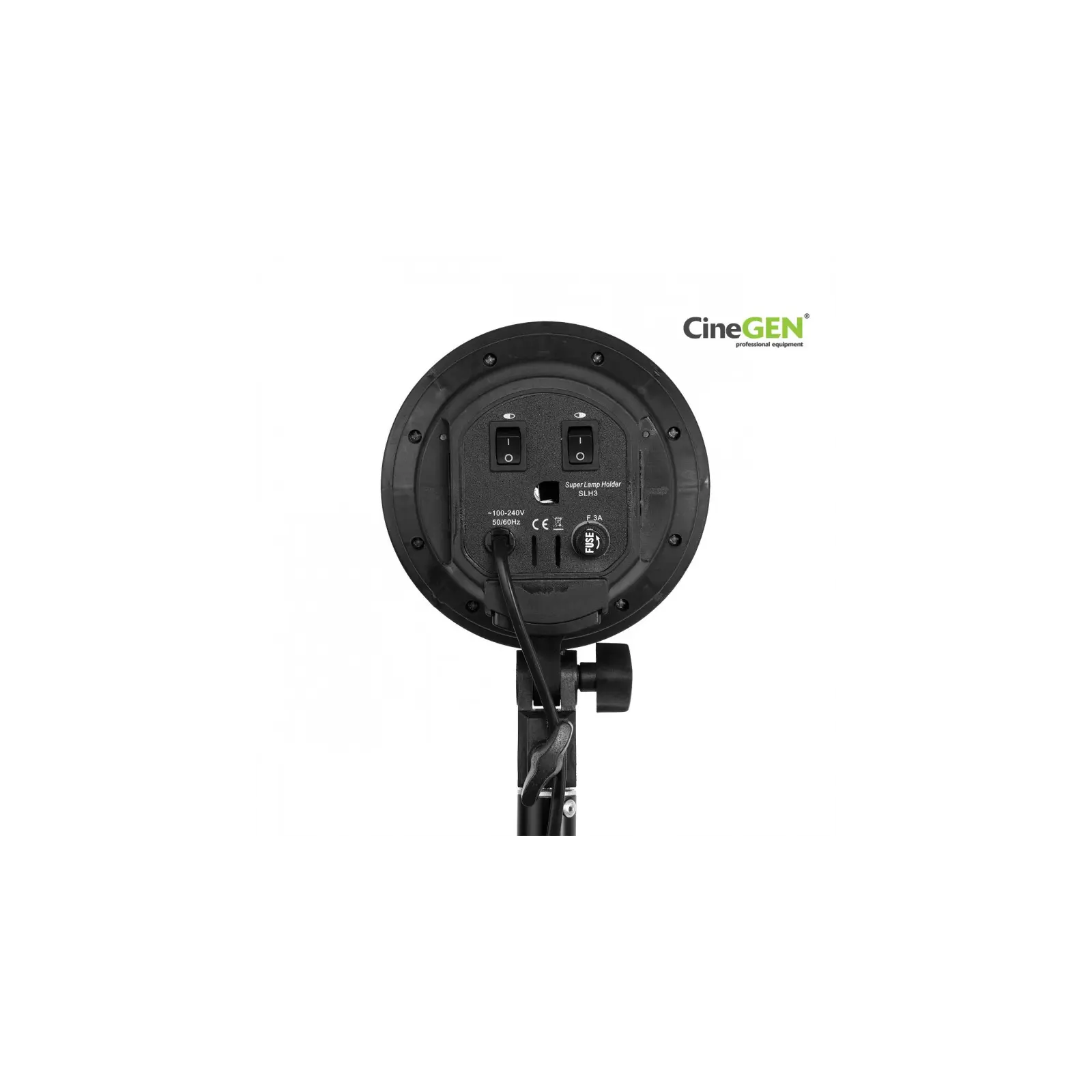

Lighting Fixture Rear Panel
Controlling the lamp is very simple and limited to two switches that turn on either the left or right pair of lamps. A 3A fuse is located in the "FUSE" socket. In the central part, there is an opening for mounting an optional umbrella.
CGLS-802 Studio Stand
A lightweight, studio and outdoor, three-section lighting stand. Maximum height of 230cm, working height of 220 cm, convenient section clamps, a 16mm studio head with a universal 1/4" thread. The stand is designed to work with small and medium lamps as well as lighting sets. It will also perform well in configurations with flashlights and continuous lights, softboxes, RedHead halogen lamps. Good build quality, 12-month warranty.
Its folded dimensions have been reduced by using a telescopic folding mechanism, thus not limiting the wide range of work (ranging from 78 to 220 cm, adjustable to any height) and universality of applications. The leg spread (from foot to foot) is 75cm.
Photo Bulb (85W/5500K)

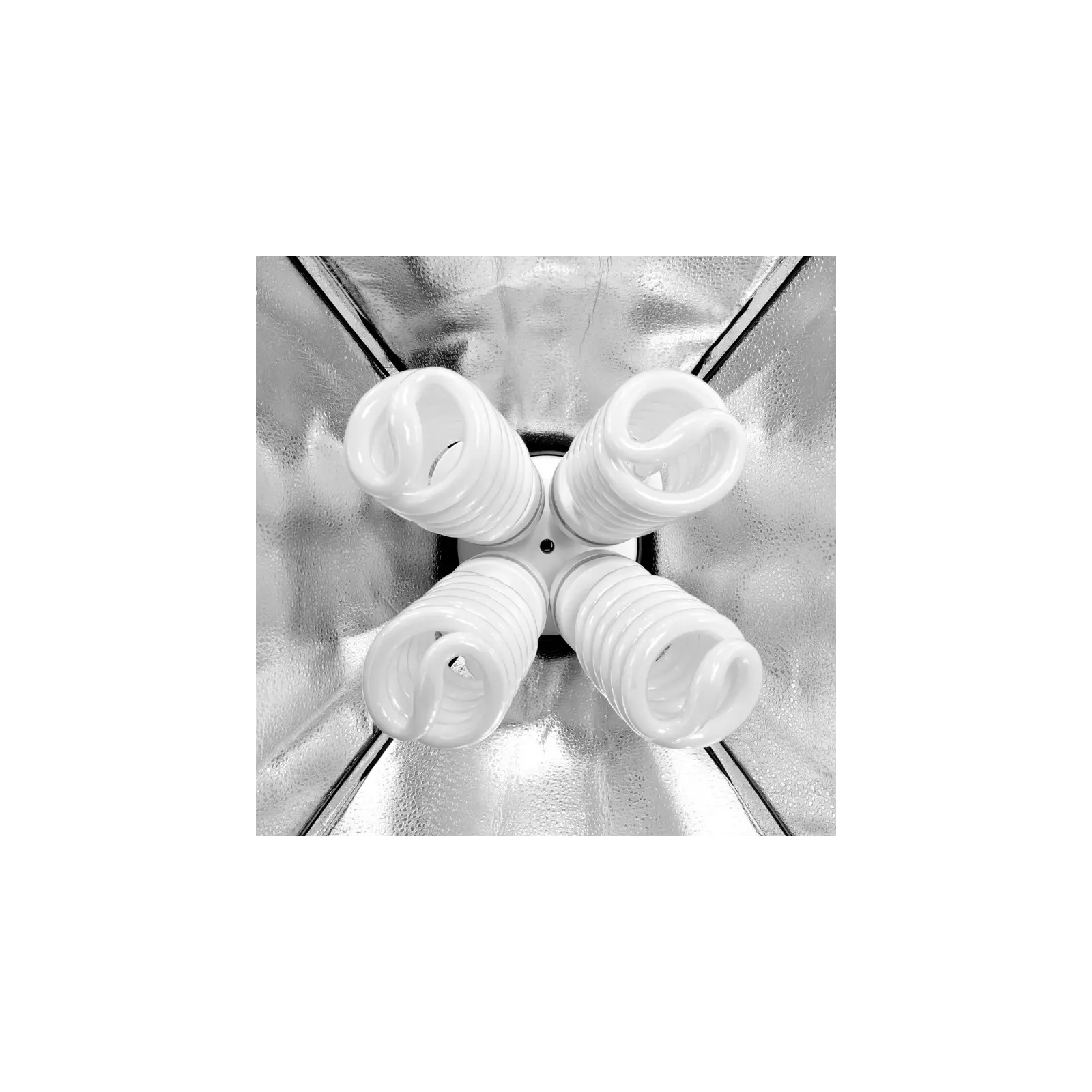

This fluorescent bulb generates light with a color ideal for photographic applications - it does not introduce any color bias. Thanks to the natural rendering of colors, this bulb is perfect for photographers working under continuous lighting conditions. Using constant lighting allows you to model light faster and better predict the final result on your photos. The low power consumption enables using this bulb in both open fixtures as well as partially closed ones (softboxes, diffusers, octas). The luminous power of an 85W bulb is equivalent to a 400W halogen lamp.
Can I use a softbox for filming?
Absolutely. Recently, we've been seeing more and more instances of photography applications being used in the world of film. The SOFTBOX 60x90cm light fixture is an excellent alternative to budget panel lamp versions (so-called kinoflo). This solution is significantly cheaper while achieving the same effect.
What's the difference between an octagonal and rectangular softbox?
The easiest way to spot a difference is by looking at the shape of reflections on reflective surfaces. This is particularly noticeable in portrait and fashion photography - the octagonal shape, similar to circular, mimics solar reflections. Octagonal softboxes also have a better light distribution (especially when lighting from the front).
What should you remember?
- Softboxes work best at short distances. Place them as close to the illuminated subjects or objects, right on the edge of the frame.
- The larger the softbox diameter, the softer the tonal transition between light and shadow.
- If you need to illuminate from a large distance - remove the diffusing fabric. This will give you even more light.
Specifications
- Weight: 3 kg
- Dimensions: 40x40 cm
- Hood Depth: 45cm
- Working Height: 280 cm
- Reactive Power: 340 W (4x 85 W)
- Luminous Power: 1600 W
- Color Temperature: 5500 K
- Sockets: 4xE27
- Adjustment: stepped 0 - 50% - 100%
- Tripod Head: standard, 16mm, 1/4"
- Power Supply: 230V, mains
How to assemble the SOFTBOX / OCTA lamp?
The lamp will arrive in a package containing: separately, the tripod, bulbs, fixture, and softbox. Assembling the lamp involves several steps:
- Remove the softbox from its cover, as well as the tensioning rods for the softbox and the diffusing fabric. Set aside the diffusing fabric.
- From the box marked CGLX4, remove the lighting fixture. On the outer edge of the fixture (black material), there are eight openings.
- Insert the glass fiber rods into the openings in the lighting fixture. It's important to insert the rods with their THICKER end into the fixture. They should go in with a slight resistance.
- Lay the softbox fabric (hood) on the floor so that the black material touches the floor and the silver side faces upward. Leave the Velcro straps unfastened.
- Place the lighting fixture onto the silver surface. Insert the thinner ends of the rods into the pockets sewn into the corners of the softbox hood.
- As you insert more rods, the softbox hood will start to stretch over the bending rods. It may be necessary to use a small amount of force, especially with octagonal softboxes.
- After assembling the hood, set up the lighting stand and attach the fixture to it. Tighten the butterfly screws and fasten the Velcro straps at the back of the hood.
- Secure the bulbs in the fixture.
- Attach the diffusing fabric by fastening it with the Velcro straps onto the hood.
SOFTBOX 40x40 Lamp - What Can You Use It For
- Main or supplementary light in portraits
- Main or supplementary light in nudes and fashion photography
- Childhood (including newborn) photography
- Product Photography
- Film studio, film set (close-ups, interviews, presentations)
- Voltage
- 230V
- Lighting type
- Continuous
- Color temperature
- 5500K
- Number of bulbs
- 4
- Fixing
- E27
- Power
- 85
- Emission type
- Fluorescence
- Shape
- Square
- Set type
- With softbox
- Series
- Vidoo™
- Softbox size
- 40x40
- Total power
- 340
